Video Surveillance Equipment
Fixed

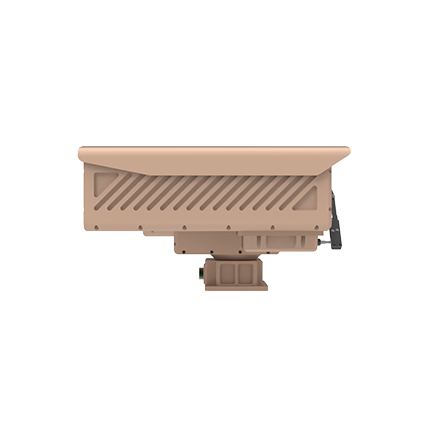

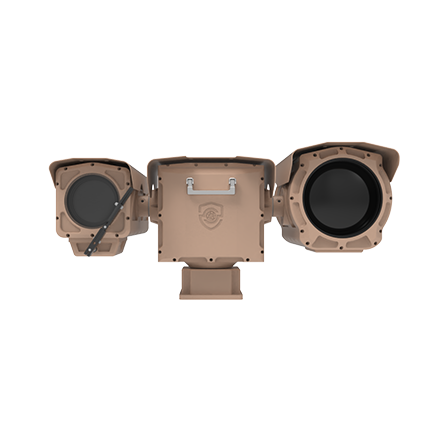

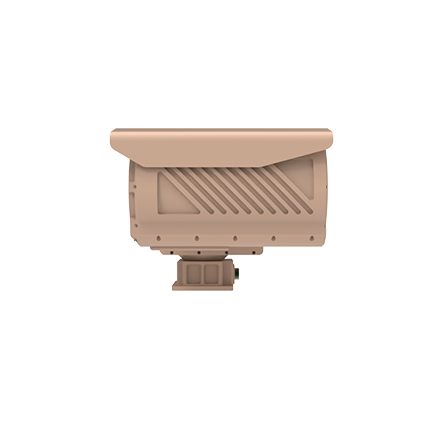

TORUSS-MR500ND
Coastal Surveillance System Intermediate-Range Video Surveillance Equipment
- 24/7 stable monitoring and module detachable structural design enhance maintenance and operational convenience through day/night camera and integrated control system
- Features
-
- 24/7 monitoring through day and night cameras.
- Camera module detachable structure for ease of maintenance.
- Communication to the connection shaft of the camera/pantile drive unit, simplification of internal components of the power connector.
- Simplified wiring and easy maintenance by applying a controller-integrated motor.
- IP66 grade waterproof, dustproof, MIL-STD-810G certification, electromagnetic certification, etc.
Key Performance
1) EO camera
- Resolution: HD 1920×1080 = 2M Pixels
- Focus distance: 500mm or more HD optical 50x zoom)
- Focus Control: Auto Focus / Manual Adjustment
2) IR camera
- Resolution: 640×480
- Focus distance: 25mm to 225mm (9x optical, 4x digital)
- Focus Control: Auto Focus / Manual Adjustment
Appearance and certification status
- Operating temperature (low/high temperature): -35°C to + 60°C
- KS C IEC 60529: 2013 (IP66/Waterproof Dustproof)
- MIL-STD-461G, MIL-STD-810G
- External dimension: 813(W) × 382(H) × 567(D)
- Weight: About 65 kg
