Video Surveillance Equipment
Mobile
TORUSS-MST500
Multi-Sensor Type Ultra-Small Near Field Thermal Image Monitoring System (EO/IR)
- EO/IR composite image monitoring equipment mounted on the mobile body, suitable for day and night surveillance and defense agencies and critical facilities surveillance
- Features
-
- It can be monitored day and night at all times.
- Optimized loading of moving objects (drons, unmanned vehicles, small ships, etc.) by significantly reducing weight and volume, and improved maneuverability.
- Minimize system power consumption with light weight.
- Flexible customization and integration for a variety of platforms.
- Stable operation even in outdoor environments such as dust/waterproofing and shock/vibration.
Key Performance
1) EO camera
- Resolution: HD 1920×1080 = 1/2.8 type 2MP CMOS
- Optical lens focal length: over 100 mm (optical 32x)
- Focus Control: Auto Focus / Manual Adjustment
2) IR camera
- Resolution: 640×480 (Output resolution: 1280×720)
- Focus distance: 60 mm
- Focus Control: Auto Focus / Manual Adjustment

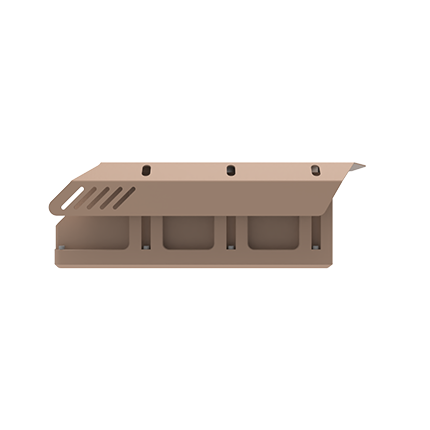

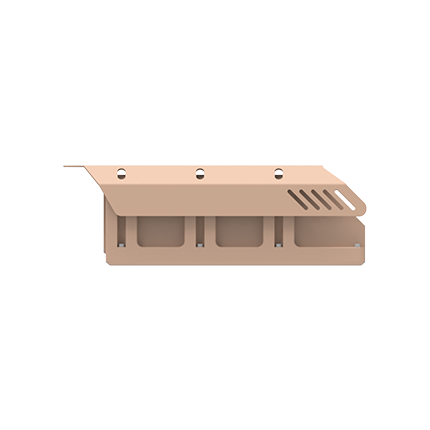

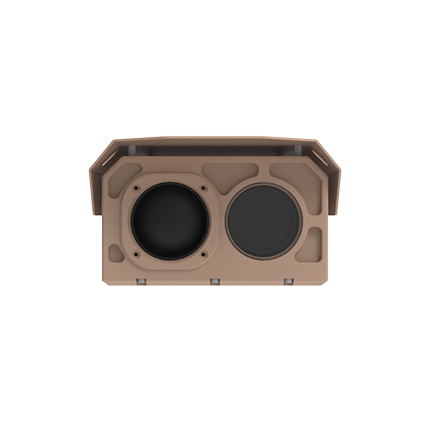

Appearance and certification status
- 220(W)× 127(H)×384(D)
- Weight: About 10 kg
