Video Surveillance Equipment
Mobile

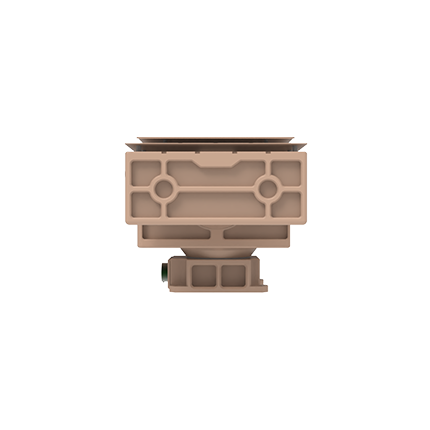

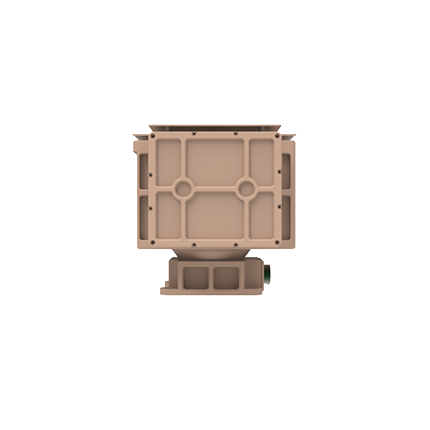

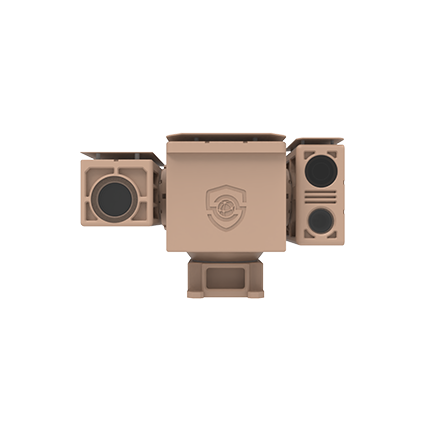

TORUSS-MR100EOD
Visible (EOD) imaging monitoring equipment for day and night observation
- By detecting people more than 600m and 150m at night and installing laser infrared irradiators, the performance of EO observation of no-wall light is strengthened.
- H/W image improvement such as fog defog function and EIS function, small and lightweight structure for excellent vehicle mounting and maintenance.
- Features
-
- Detection/recognition of people more than 600m per day and more than 150m per night.
- Equipped with a laser infrared irradiator, EO observation (improved performance) even in the absence of light.
- Equipped with H/W type fog transmission function and image shaking correction function (EIS).
- Camera module detachable structure for ease of maintenance.
- IP66 protection level, MIL-STD-810G certification, EM certification.
- Small and lightweight construction applied as a vehicle-mounted type.
Key Performance
1) EO camera
- Resolution: Full HD 1920×1080 = 2M Pixels
- Optical distance: 80 mm or more (21x optical)
- Focus Control: Auto Focus / Manual Adjustment
2) IR camera
- Resolution: 640×512
- Focus distance: 19mm/1FOV(8x digital)
- Focus Control: Auto Focus / Manual Adjustment
3) Infrared Laser Illuminator
- Maximum observation distance: 500 m or more
- Laser safety level: CLASS-4(3B)
Appearance and certification status
- Operating temperature (low/high temperature): -33°C to + 60°C
- KS C IEC 60529: 2013 (IP66/Waterproof Dustproof)
- MIL-STD-461G, MIL-STD-810G
- External dimension: 397 (W) × 248 (H) × 249 (D)
- Weight: About 20 kg
