Video Surveillance Equipment
Fixed

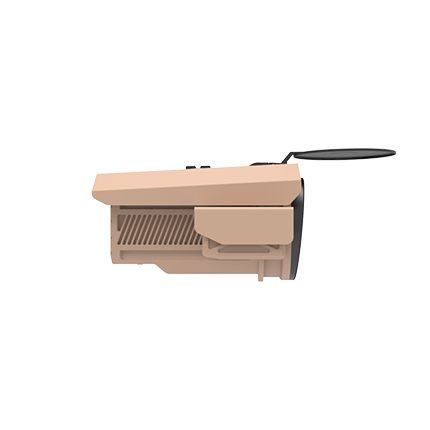

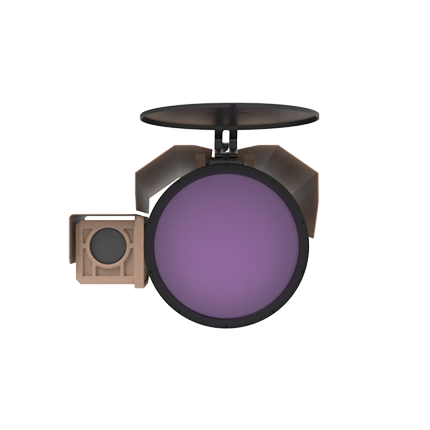

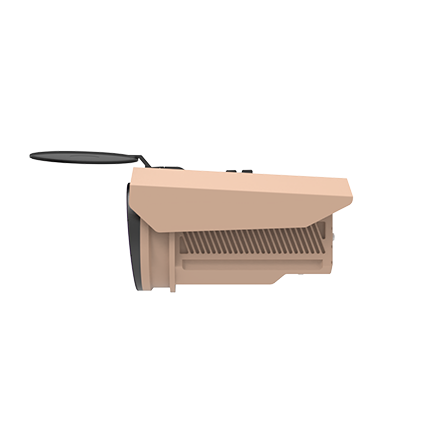

TORUSS-LR900Z
Radar Projectile Tracking Long Range Infrared Camera Engineering Unit
- High-resolution cooled thermal camera with precision alignment and reliable performance for advanced surveillance applications.
- Features
-
- Equipped with HD resolution cooled thermal imaging camera.
- Expensive thermal imaging lens protection with IR window and protective cover.
- Protective cover remote opening/closing capability improves NUC (Uniformity Correction) performance.
- Use a low-noise, reliable linear sterling cooler, high sensitivity and stability.
- Equipped with a remote control precision alignment device, it is easy to align with tracking radar.
- IP66 rated waterproof, dustproof, MIL-STD-810G certification, and electromagnetic wave certification.
Key Performance
1) EO camera
- Resolution: 1920×1080
- Optical distance: 278 mm (44x optical, 16x digital)
- Focus Control: Auto Focus / Manual Adjustment
2) IR camera
- Resolution: 1280×1024
- Focus distance: 72mm to 900mm (12.5x optical, 8x digital)
- Focus Control: Auto Focus / Manual Adjustment
Appearance and certification status
- Operating temperature: -32°C to +43°C
- Authentication: IP66, MIL-STD810G
- External dimension: 488(W) × 405(H) × 599(D)
- Weight: 36 kg
