Video Surveillance Equipment
Fixed

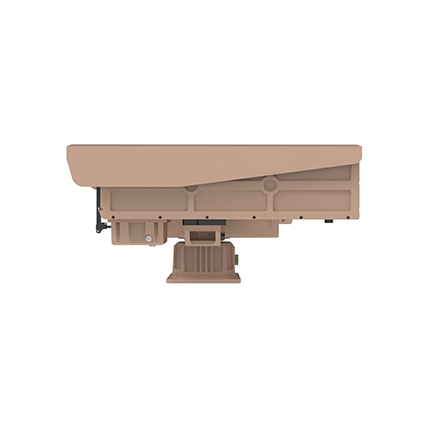

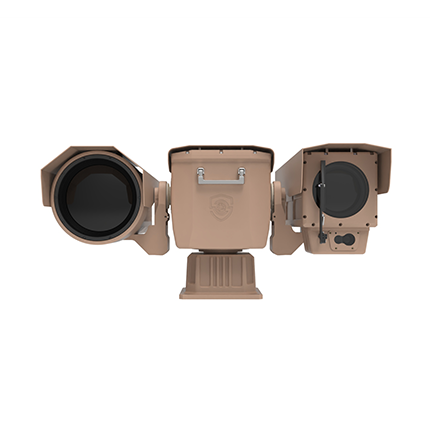

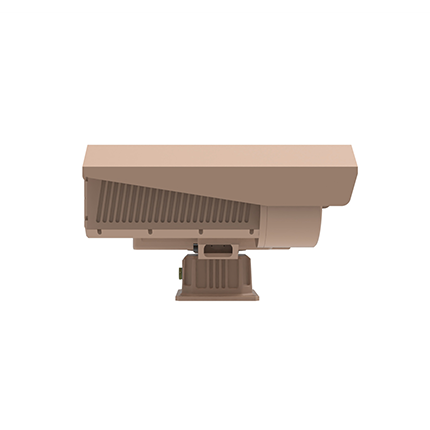

TORUSS-LR1000
Long-range EO/IR/LRF image monitoring equipment
- Radar-linked through-to-Cue integrated system implementation verification model.
- Adopted as Jeju Coast Guard Thermal Imaging Monitoring Equipment (TOD), verification of the suitability of coastal and garrison day and night borders.
- TTA certified products.
- Features
-
- Target position can be measured with laser range finder (LRF).
- Long-distance target precision orientation with high precision drive and image stabilization function.
- National major facilities/industrial facilities/port facilities/day and night monitoring of island areas.
- Adopted as Jeju Coast Guard Thermal Imaging Monitoring Equipment (TOD), verification of the suitability of coastal and garrison day and night borders.
Key Performance
1) EO camera
- Resolution: HD 1920×1080 = 2M Pixels
- 2MP Box Camera TTA Certified Products
- Optical lens focal length: 1000mm or more (66x optical)
2) IR camera
- Resolution: 640×512 (Output resolution: HD 1280×720)
- Focus distance: 35mm to 690mm (19x optical, 8x digital)
- Focus Control: Auto Focus / Manual Adjustment
3) Install laser range finder (LRF)
- Maximum measured distance: 20 km or more
- Laser safety grade: Laser class per IEC 60825-1: 2014: Class 1M
Appearance and certification status
- Operating temperature (low/high temperature): -32°C to + 43°C
- KS C IEC 60529: 2013 (IP66/Waterproof Dustproof)
- KC Electromagnetic Compatibility Certification (EMI/EMC)
- KS C IEC 60068-2-2-2 (High Temperature) KS C IEC 60068-2-1 (Low Temperature)
- KS C IEC 60068-2-52 (salt water, spray) KS C IEC 60068-2-61 (weather resistance)
- KS C IEC 60068-2-38 (temperature), 60068-2-30 (temperature and humidity)
- MIL-STD-461G, MIL-STD-810G
- External dimension: 805(W)x386(H)x730(D)
- Weight: About 71 kg
