TORUSS-ADS3000T

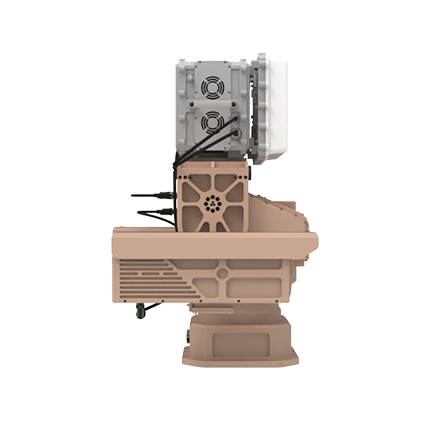

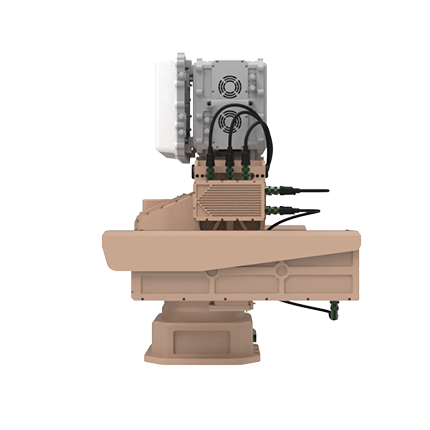

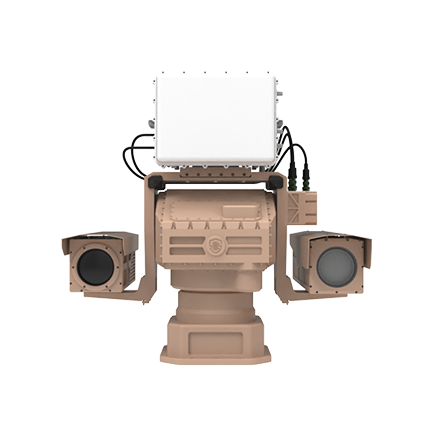

Electronic Optical Tracker (EO/IR Jammer Integrated) with Large Drone Integrated System
- The drone integration system in important areas is a facility-type drone protection system to effectively respond to drone threats targeting core facilities of the land, sea, and air forces such as bases and naval ports.
- The system realizes facility protection by detecting and identifying small drones penetrating the airspace in real time and disabling the operation of drones using radio disturbance technology.
- Features
-
- Equipped with a zero-backlash harmonic reducer, high-precision position control is possible.
- By applying a high-torque BLDC motor, stable driving performance is secured even in the event of disturbance such as strong winds and heavy snow.
- Upscale technology provides high-definition video output, excellent detection at night and in bad conditions.
- Ensuring stable operation even in poor environments.
- IP66 grade waterproof and dustproof design, MIL-STD-461G, and MIL-STD-810G certification are obtained.
- Built-in embedded image tracking device enables real-time image analysis.
- Minimize video delays and improve the accuracy of automatic drone tracking.
Key Performance
1) EO camera
- Resolution: HD 1920×1080 = 2M Pixels
- Optical lens focal length: 1000mm or more (66x optical)
- Focus Control: Auto Focus / Manual Adjustment
2) IR camera
- Resolution: 640×480 (Output resolution: 1280×720/1280×1024)
- Focus distance: 420mm to 900mm
- Focus Control: Auto Focus / Manual Adjustment
Appearance and certification status
- Operating temperature (low/high temperature): -32°C to +55°C
- IP66 (Waterproof/Dustproof)
- MIL-STD-461G, MIL-STD-810G
- Possession of related patents
- External dimension: 1010(W)×992(H)×730(D) (Without Jammer)
- Weight: Approximately 145 kg (without Jammer)
