TOD Vehicle-mounted thermal image monitoring equipment
- TORUSS-LR1000 Series with Intelligent Vehicle-mounted Long Range Thermal Imaging to Establish a Perfect Monitoring System for Coastal Boundaries and Reinforce Responsible Island Coastal Surveillance Square Areas
- Features
-
- Installation of a level jack to prevent shaking of the vehicle interior sound insulation/screen.

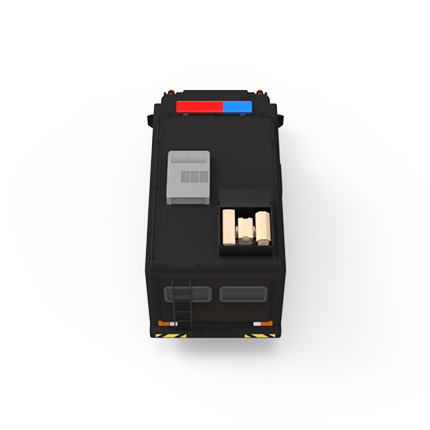

- Installation of electric roof sliding doors for operator convenience.
- Through-to-queue multi-sensor system interworking system (small unmanned aerial vehicle detection/tracking).
- It consists of a daytime sensor, a thermal image sensor, and a distance measurer (LRF) core component modular structure thermal image monitoring equipment.
- AI&Deep Learning based Target Image Detection and Lock-On Automatic Tracking System Features (optional).
- Thermal image monitoring equipment environmental certification test IP66, EMI/EMC, KS (high temperature/low temperature/salt water, spray/wet resistance).
Key Performance
1) EO camera
- Resolution: HD 1920×1080 = 2M Pixels
- Optical lens focal length: 1000mm or more (66x optical)
- Focus Control: Auto Focus / Manual Adjustment
2) IR camera
- Resolution: 640×512 (Output resolution: HD 1280×720)
- Focus distance: 35mm to 690mm (19x optical, 8x digital)
- Focus Control: Auto Focus / Manual Adjustment
3) Install laser range finder (LRF)
- Maximum measured distance: 20 km or more
- Laser safety grade: Laser class per IEC 60825-1: 2014: Class 1M

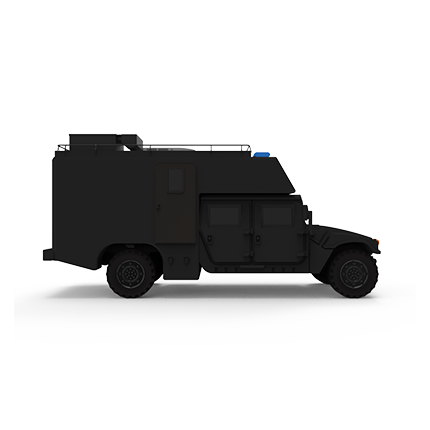

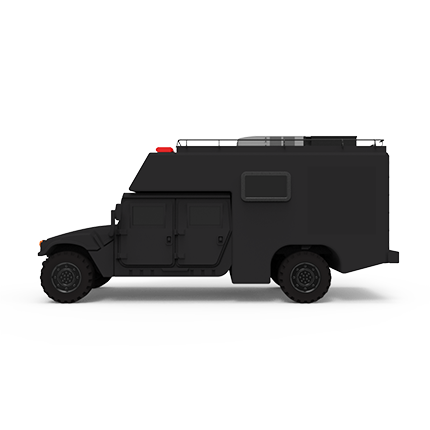

4) Tactical vehicle specifications and key configuration diagrams
- Vehicle: Small Tactical Vehicle K351C/Defense Standards
- Engine power: 225 ps/3,200 rpm
- Driving method: Four-wheel drive
Appearance and certification status
- Operating temperature (low/high temperature): -32°C to + 43°C
- KS C IEC 60529: 2013 (IP66/Waterproof Dustproof)
- KC Electromagnetic Compatibility Certification (EMI/EMC)
- KS C IEC 60068-2-2-2 (High Temperature) KS C IEC 60068-2-1 (Low Temperature)
- KS C IEC 60068-2-52 (salt water, spray) KS C IEC 60068-2-61 (weather resistance)
- KS C IEC 60068-2-38 (temperature), 60068-2-30 (temperature and humidity)
- MIL-STD-461G, MIL-STD-810G
- External dimension: 805(W)x386(H)x730(D)
- Weight: About 71kg
